Mother Baby Direct Feeding

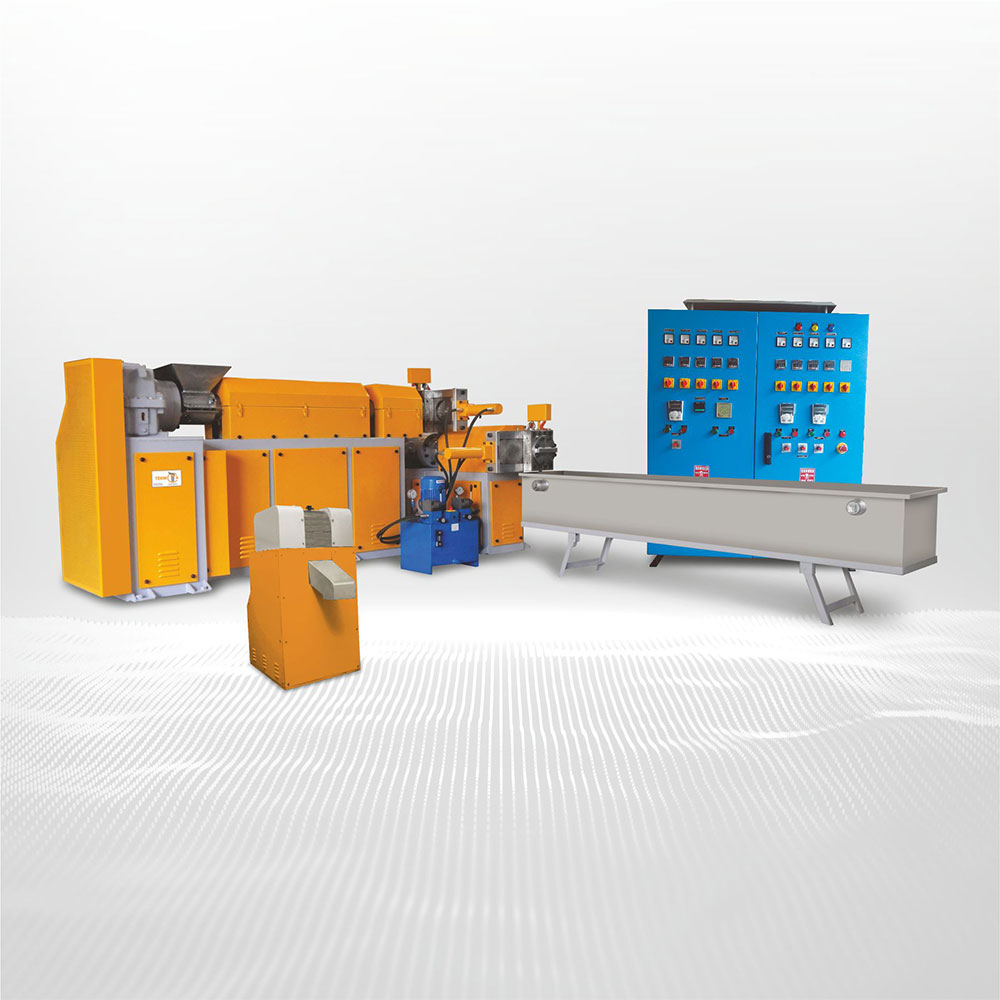

Our two stage mother baby recycling plant is specially design for woven sack industries. It is easy to operate and gives you maintenance free constant high quality granules. No need to agglo or grind direct tape waste, fabric waste, jumbo belt, linear waste and punching waste feeding. Perfect filtration by two stage filtration gives high quality granules.

MODEL TMB-95/80 TMB-120/110 TMB-140/130
Mother Screw & Barrel Vented 95mm 18:1 L/D Vented 120mm 18:1 L/D Vented 140mm 18:1 L/D
Mother main motor 15 HP 25 HP 40 HP
Baby Screw & barrel Plain 80mm 10:1 L/D Plain 110mm 10:1 L/D Plain 130mm 10:1 L/D
Baby main motor 7.5 HP 10 HP 20 HP
Connected load 50kw 62kw 90kw
Max. output 40 to 50 kgs/hr 70 to 80 kgs/hr 110 to 130 kgs/hr

FEATURES

  • Inbuilt thrust gear box
  • Nitrided screw & barrel
  • Synchronized AC drive for pallatized & baby extruder

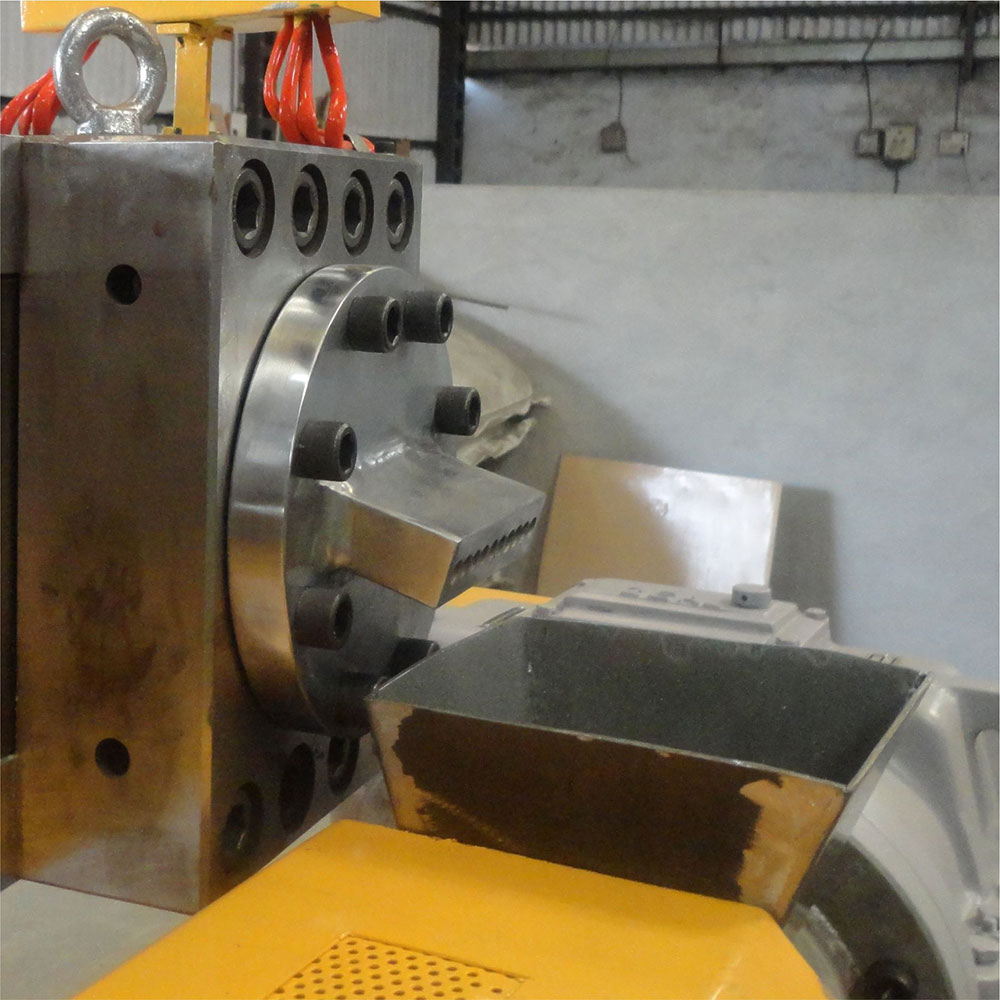

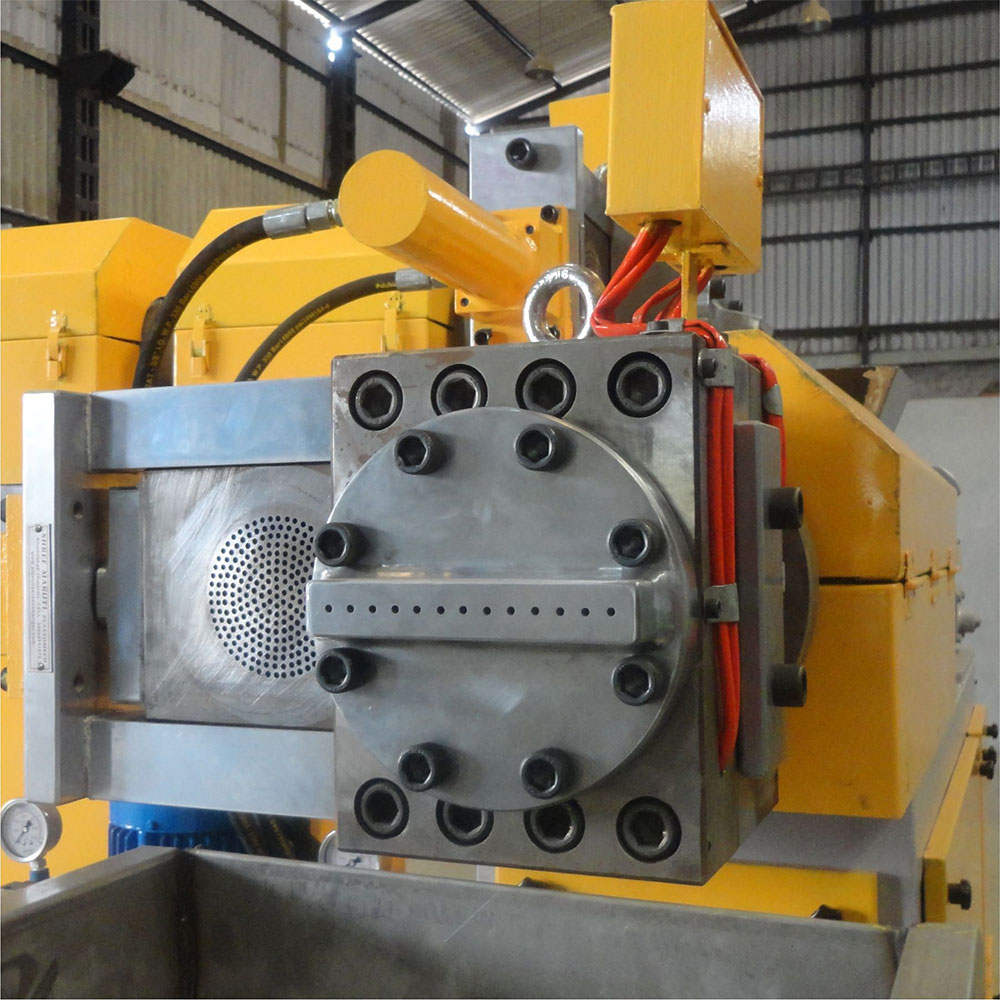

  • Hydraulic platen type screen changer on both extruder
  • Stainless steel water tank
  • Ceramic band heaters

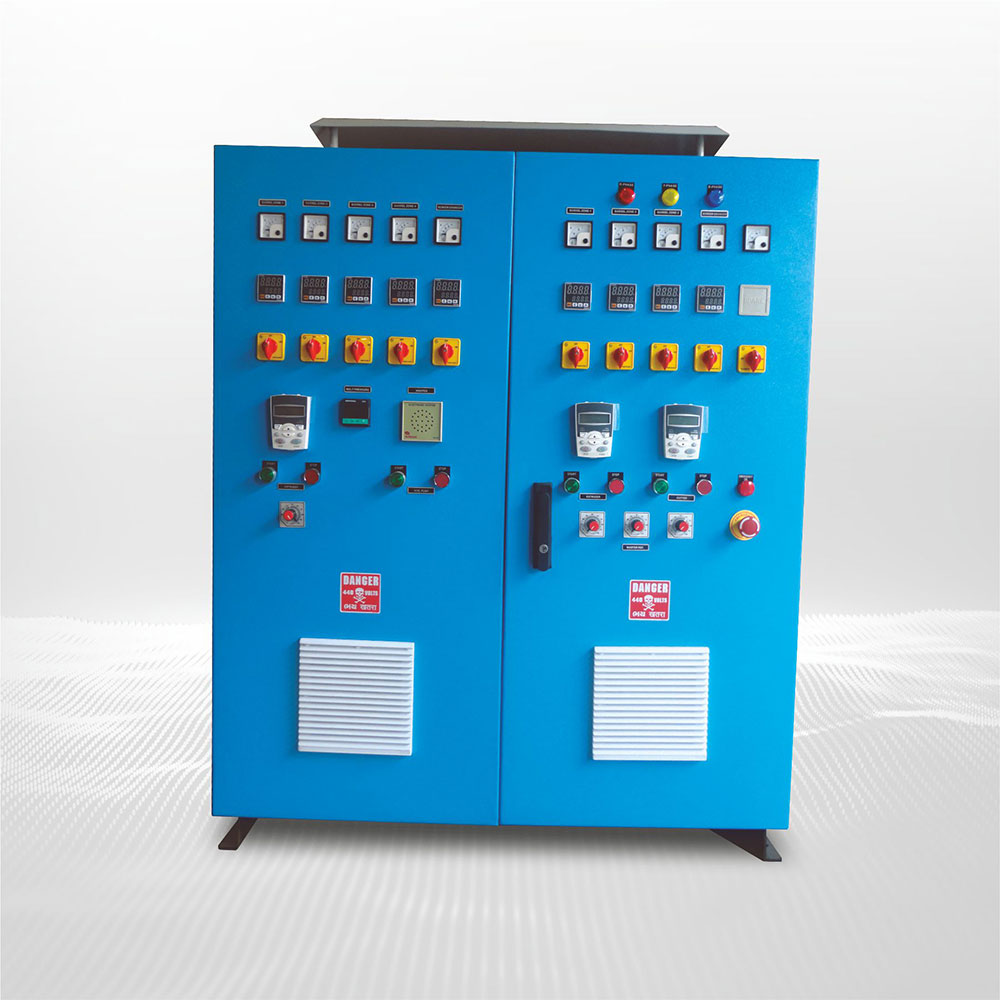

  • PID type control panel

OPTIONAL ACCESSORIES

  • AC drive for mother extruder
  • Melt pressure transducer
