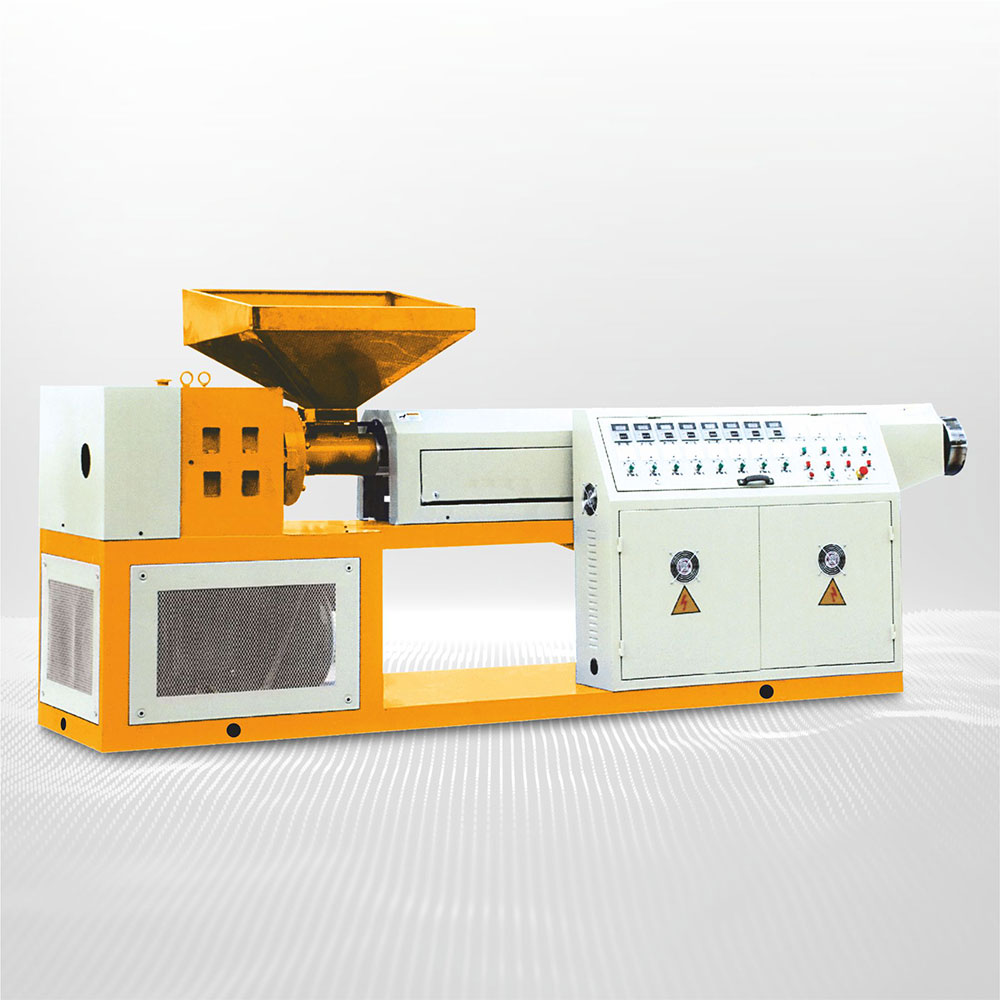

Plastic Recycling Plant


Plastic recycling process is to make reusable plastic granules from plastic waste. It can be mix with virgin plastic granules or used alone to make plastic products. We design and manufacture high quality plastic recycling plant to achieve higher production at lower cost. We use vented recycling plant when gas, air and other volatiles need to remove in order to make satisfactory granules.

MODEL TCR75 TCR90 TCR100 TCR125 TCR140
Screw & Barrel 75mm 32:1 L/D 90mm 32:1 L/D 100mm 32:1 L/D 125mm 32:1 L/D 140mm 32:1 L/D
Main Motor 15kW 18.75kw 22.5kw 50kw 67.5kw
Connected Load 40kw 50kw 55kw 105kw 142kw
Max. Output 60 to 70 kgs/hr 90 to 100 kgs/hr 120 to 130 kgs/hr 225 to 250 kgs/hr 350 kgs/hr

FEATURES

  • Inbuilt thrust helical gear box
  • Nitrided plain/vented screw & barrel
  • Branded foot mounted electric motor
  • Energy saving heaters with blower cover
  • Hydraulic platen type screen changer
  • Synchronized AC drive for main motor & pallatizer

OPTIONAL ACCESSORIES

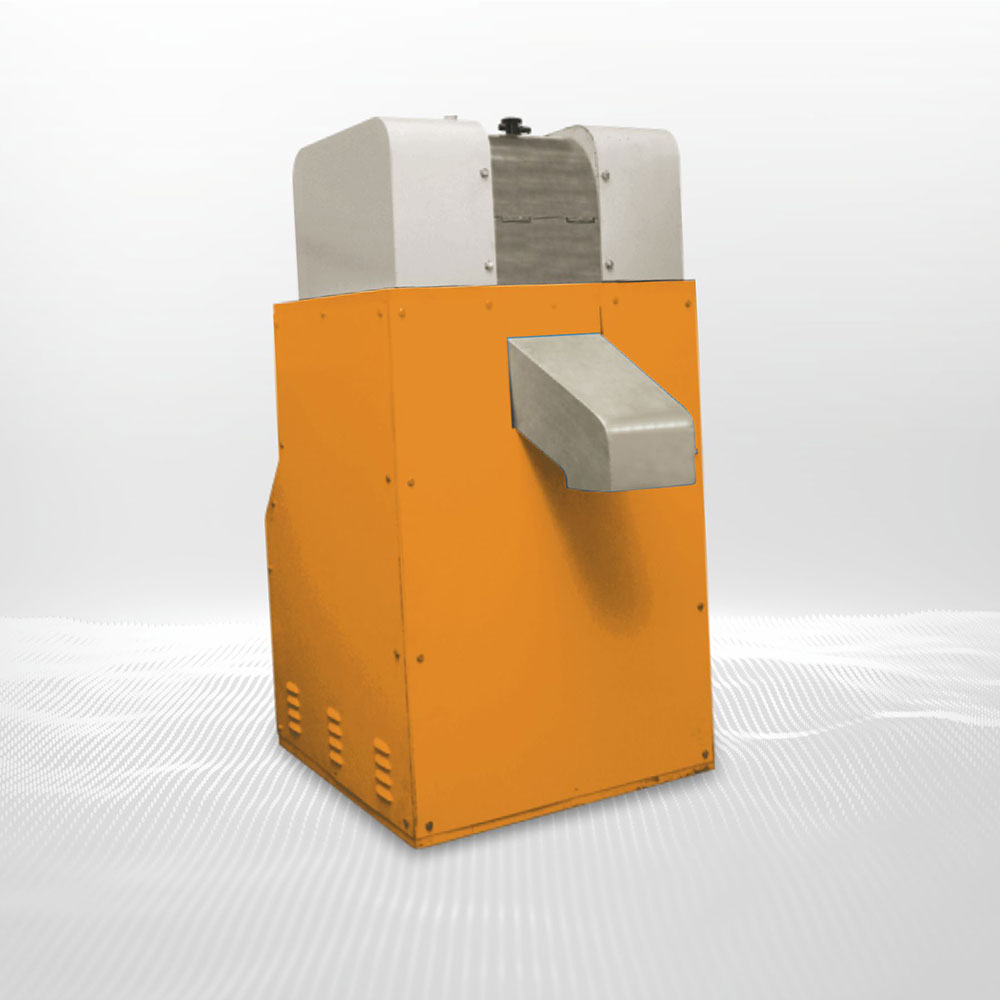

  • Scrap grinder
  • Agglomerator
  • Melt pressure transducer
  • Die face cutter
